Automatic cleaning system of solar photovoltaic modules

Cleaning system "Smart PV Booster"

Solar photovoltaic modules are usually covered with a layer of dust, so that the solar light does not penetrate into the solar cells, and the electricity produced is significantly reduced. That is why it is necessary to clean the photovoltaic modules regularly.

The cleaning task is especially important in the summer months, when in the presence of bright sun, due to the lack of rain the modules are covered with a layer of dust, the energy produced is reduced by up to 30-50%.

However, the process of cleaning solar modules is laborious and dangerous, as the modules are usually placed in high positions on the roof.
Solvar Systems has developed an automated system for cleaning photovoltaic modules, which allows to clean the surface of the modules with a high-pressure water jet. In addition, the system allows to clean the snow on the photovoltaic modules during the winter and restore the operation of the modules.

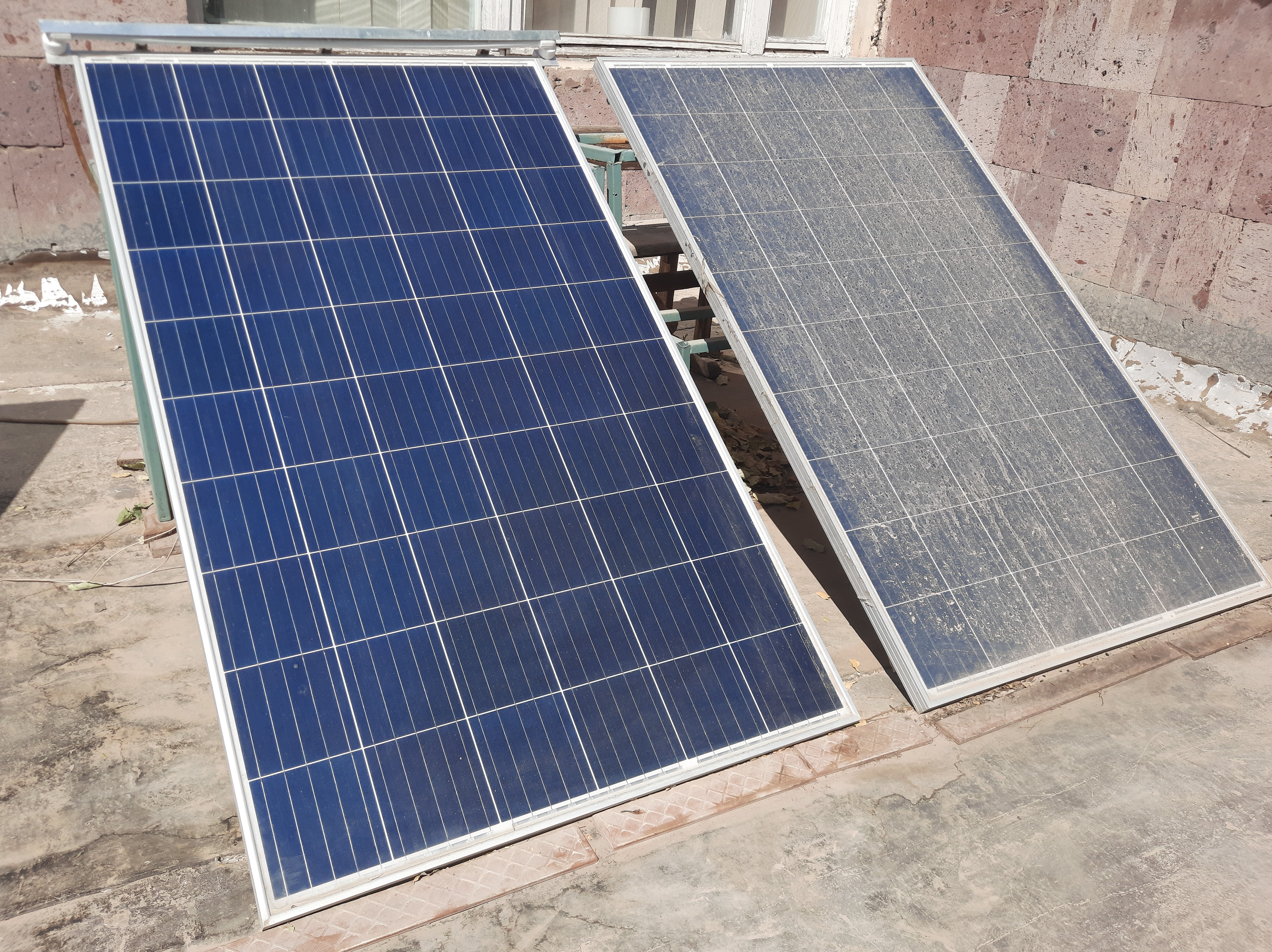

                                        Cleaned            Dirty

The cleaning system consists of the following components:

  • a pipeline mounted on the top of the solar modules with macrometer size small diameter holes,
  • an electronic control unit,
  • a dust sensor of SolVar Systems,

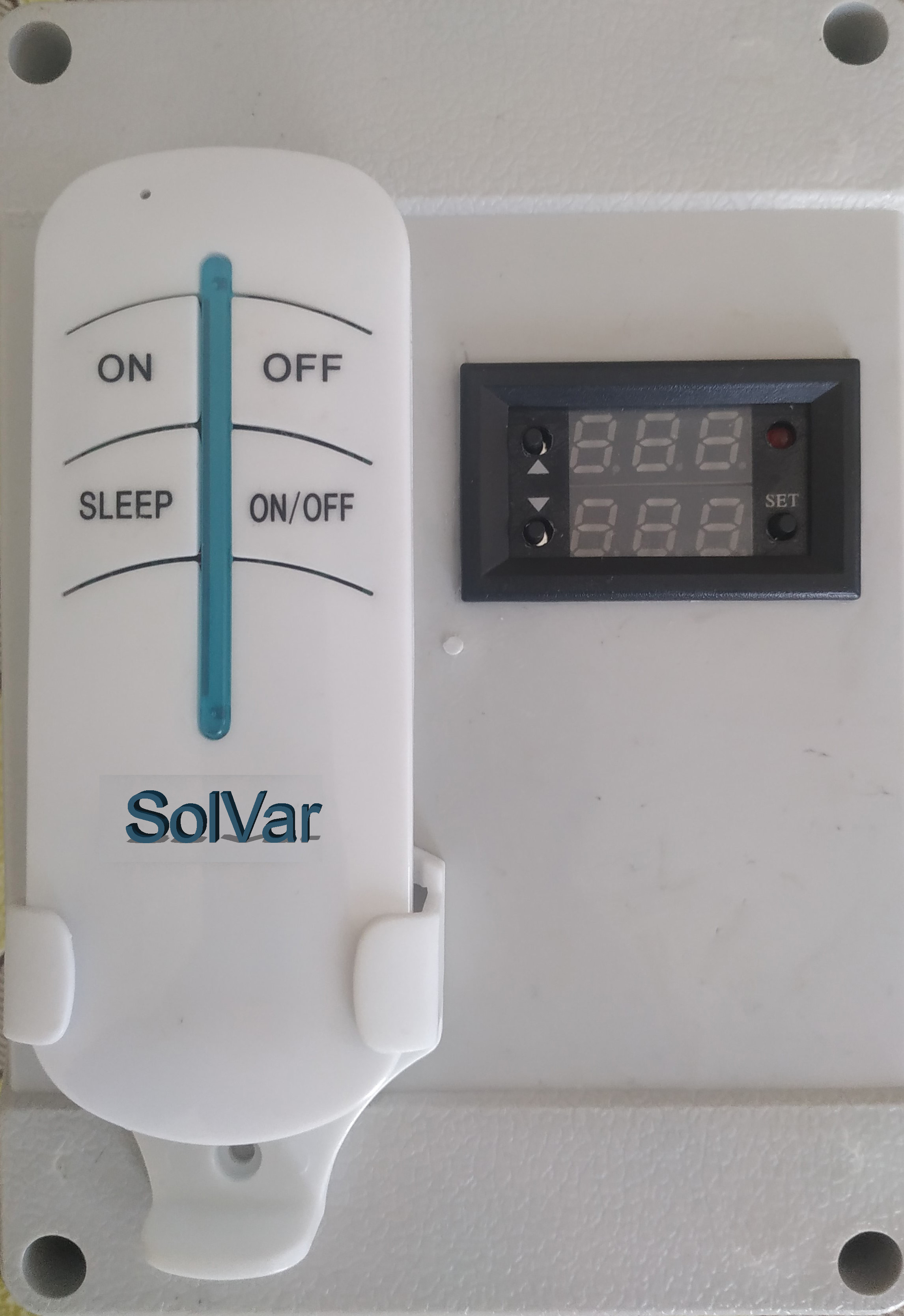

  • a remote control unit.



The cleaning system can be used in the following operating modes:

  • By remote control.
    The operator carries out cleaning at any time through the remote control (from the house or yard)
  • According to the periodicity entered by the operator in advance, the system automatically performs the cleaning
  • Through the switch.
    cleaning is carried out by means of a switch located on the electronic control unit, turning it on and off
  • Automatically.
    The system automatically performs the cleaning after receiving a signal from the dust sensor.

LEAFLET

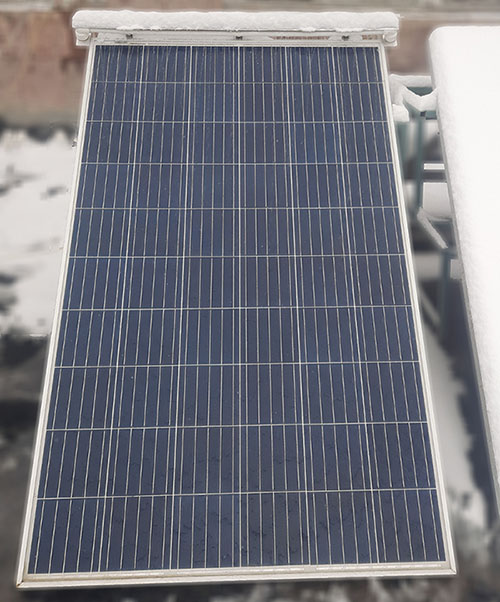

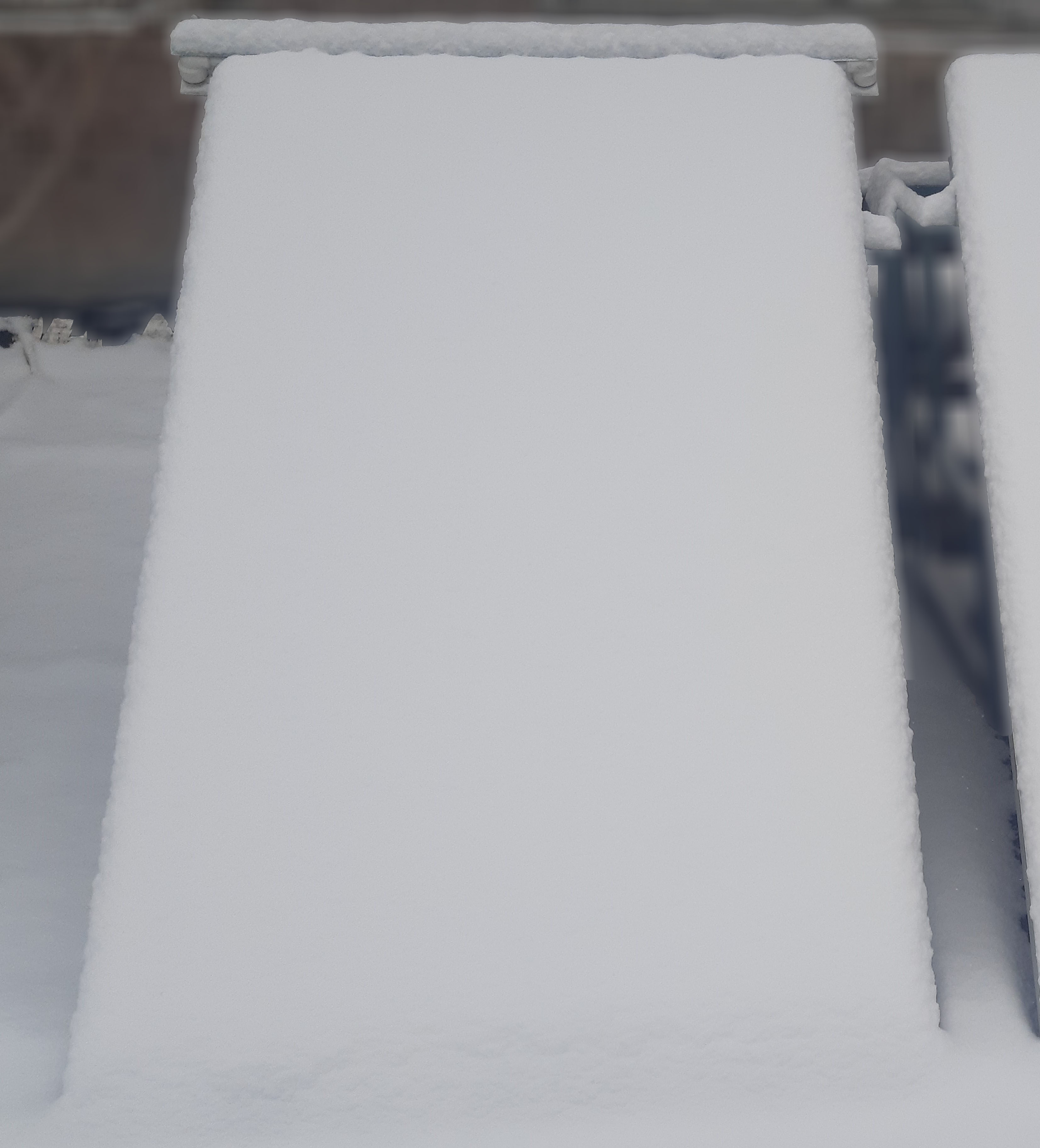

                                layer of snow                       after cleaning


The developed cleaning system is economically profitable. It allows with a small investment to increase significantly the efficiency of photovoltaic modules, get more electricity, especially during the summer months, in the presence of bright Sun.
